Earthquake Report: M 7.4 Halmahera, Indonesia

I am catching up with Earthquake Reports after several bouts of illness.

A couple weeks ago, there was a magnitude M 7.6 earthquake in the Molucca Strait (now a M 7.4).

https://earthquake.usgs.gov/earthquakes/eventpage/us6000slss/executive

This region is a complicated tectonic area.

The Halmahera Strait/Molucca Sea region is interesting as there is a pair of divergent subduction zones here. Basically, one dips to the east and one dips to the west, though it is a little more complicated.

McCaffrey et al. (1980) presented one of the first views of the subduction/thrust tectonics in this region. Since then, advances in marine geophysical methods have furthered our understanding and have generally re-enforced the early hypotheses rather well.

This M 7.6 (now 7.4) earthquake has a thrust earthquake mechanism. Thrust earthquakes are the result of tectonic compression.

Subduction zones are convergent plate boundaries, where plates are moving towards each other (creating compression).

Below is my interpretive poster for this earthquake

  • I plot the seismicity from the past month, with diameter representing magnitude (see legend). I include earthquake epicenters from 1925-2025 with magnitudes M ≥ 3.0 in one version.
  • I plot the USGS fault plane solutions (moment tensors in blue and focal mechanisms in orange), possibly in addition to some relevant historic earthquakes.
  • A review of the basic base map variations and data that I use for the interpretive posters can be found on the Earthquake Reports page. I have improved these posters over time and some of this background information applies to the older posters.
  • Some basic fundamentals of earthquake geology and plate tectonics can be found on the Earthquake Plate Tectonic Fundamentals page.

    I include some inset figures. Some of the same figures are located in different places on the larger scale map below.

  • In the upper left corner is a small scale map showing the major plate boundaries.

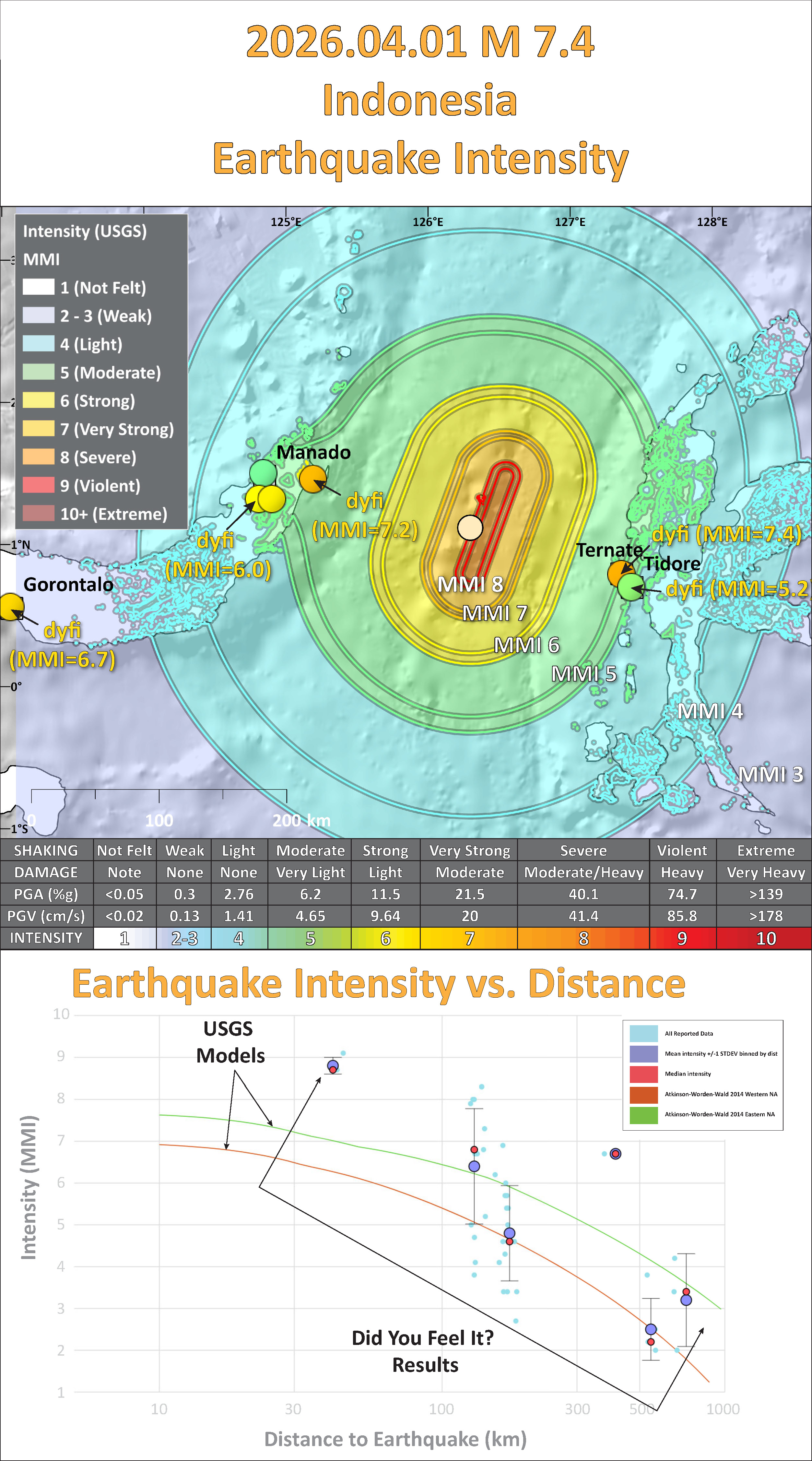

  • In the lower right corner is a map that shows the M 7.4 earthquake intensity using the modified Mercalli intensity scale. Earthquake intensity is a measure of how strongly the Earth shakes during an earthquake, so gets smaller the further away one is from the earthquake epicenter. The map colors represent a model of what the intensity may be. The USGS has a system called “Did You Feel It?” (DYFI) where people enter their observations from the earthquake and the USGS calculates what the intensity was for that person. The dots with yellow labels show what people actually felt in those different locations.
  • To the left of the intensity map is a plot that shows the same intensity (both modeled and reported) data as displayed on the map. Note how the intensity gets smaller with distance from the earthquake.
  • In the upper right corner is a map that shows the results of the USGS earthquake triggered landslide and earthquake induced liquefaction model. Read more about this model here.
  • In the lower left is the USGS finite fault model that shows their estimate of the amount that the fault slipped during this earthquake.
  • In the left-center is a map from Hall (2001) that shows the tectonic setting for the entire region.
  • Here is the map with a month’s seismicity plotted.
