Earthquake Report: M 6.9 Philippines

Here I present a poster for the M 6.9 Hubbard Glacier Earthquake in Yukon Territory/Alaska.

https://earthquake.usgs.gov/earthquakes/eventpage/us6000rdrz/executive

This earthquake slipped along a fault that may be related to the Philippine fault (a strike-slip fault.

The mechanism is strike-slip and because of the Philippine fault system, I interpret this as a left-lateral strike-slip earthquake.

I don’t always have the time to write a proper Earthquake Report. However, I prepare interpretive posters for these events.
Because of this, I present Earthquake Report Lite. (but it is more than just water, like the adult beverage that claims otherwise). I will try to describe the figures included in the poster, but sometimes I will simply post the poster here.

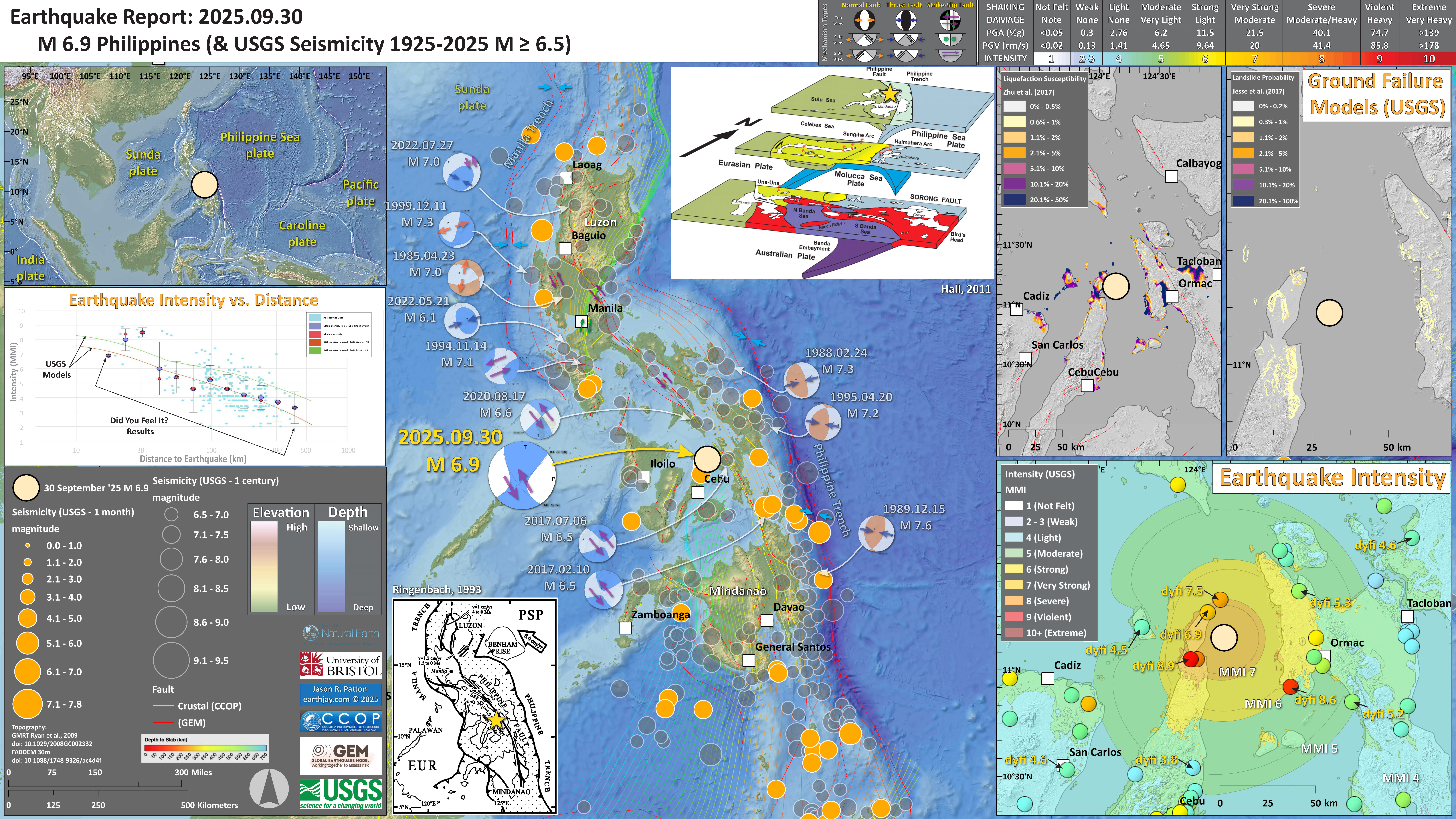

Below is my interpretive poster for this earthquake

  • I plot the seismicity from the past month, with diameter representing magnitude (see legend). I include earthquake epicenters from 1923-2023 with magnitudes M ≥ 3.0 in one version.
  • I plot the USGS fault plane solutions (moment tensors in blue and focal mechanisms in orange), possibly in addition to some relevant historic earthquakes.
  • A review of the basic base map variations and data that I use for the interpretive posters can be found on the Earthquake Reports page. I have improved these posters over time and some of this background information applies to the older posters.
  • Some basic fundamentals of earthquake geology and plate tectonics can be found on the Earthquake Plate Tectonic Fundamentals page.

    I include some inset figures.

  • In the left center is a map showing the plate tectonic boundaries (from the USGS).
  • In the lower right corner is a map that shows the M 7.0 earthquake intensity using the modified Mercalli intensity scale. Earthquake intensity is a measure of how strongly the Earth shakes during an earthquake, so gets smaller the further away one is from the earthquake epicenter. The map colors represent a model of what the intensity may be. The USGS has a system called “Did You Feel It?” (DYFI) where people enter their observations from the earthquake and the USGS calculates what the intensity was for that person. The dots with yellow labels show what people actually felt in those different locations.
  • In the center left is a plot that shows the same intensity (both modeled and reported) data as displayed on the map. Note how the intensity gets smaller with distance from the earthquake.
  • In the upper right corner are two maps showing the possibility of earthquake triggered landslides and earthquake induced liquefaction for these two earthquakes.
  • To the left of the ground failure maps is a low-angle oblique illustration from Hall (2011) that shows the complicated configuration of tectonic plates in the region.
  • In the center left is a map that shows the plate tectonic boundaries (Ringenbach, 1983). I include a yellow star showing the location of this M 6.9 earthquake.
  • Here is the map with a month’s seismicity plotted.
