Searles Valley M6.4 Results

Table Of Contents

• Magnitude Number Distribution
  • 10 Year Magnitude Number Distribution
  • 1 Year Magnitude Number Distribution
  • 1 Month Magnitude Number Distribution
  • 1 Week Magnitude Number Distribution
  • 1 Day Magnitude Number Distribution
  • 1 Hour Magnitude Number Distribution
• Hazard Change Over Time
  • M≥5.0 Hazard Change Over Time
  • M≥6.0 Hazard Change Over Time
  • M≥7.0 Hazard Change Over Time
  • M≥8.0 Hazard Change Over Time
• Trigger Rupture Fault Map
• Fault Distances To Triggers
• Section Participation
  • Section Participation Plots
  • Supra-Seismogenic Parent Sections Table
  • M≥6.5 Parent Sections Table
  • M≥7 Parent Sections Table
  • M≥7.5 Parent Sections Table
  • M≥8 Parent Sections Table
  • Fault Magnitude-Probability Distributions
• Gridded Nucleation
• JSON Input File

Magnitude Number Distribution

(top)

10 Year Magnitude Number Distribution

(top)

Legend

• Mean (thick black line): mean expected number across all 100000 catalogs
• 2.5%,97.5% (thin black lines): expected number percentiles across all 100000 catalogs
• Median (thin blue line): median expected number across all 100000 catalogs
• Mode (thin cyan line): modal expected number across all 100000 catalogs
• 10 yr Probability (thin red line): 10 year probability calculated as the fraction of catalogs with at least 1 occurrence
• 95% Conf (light red shaded region): binomial 95% confidence bounds on probability
• Primary (thin green line): mean expected number from primary triggered aftershocks only (no secondary, tertiary, etc...) across all 100000 catalogs

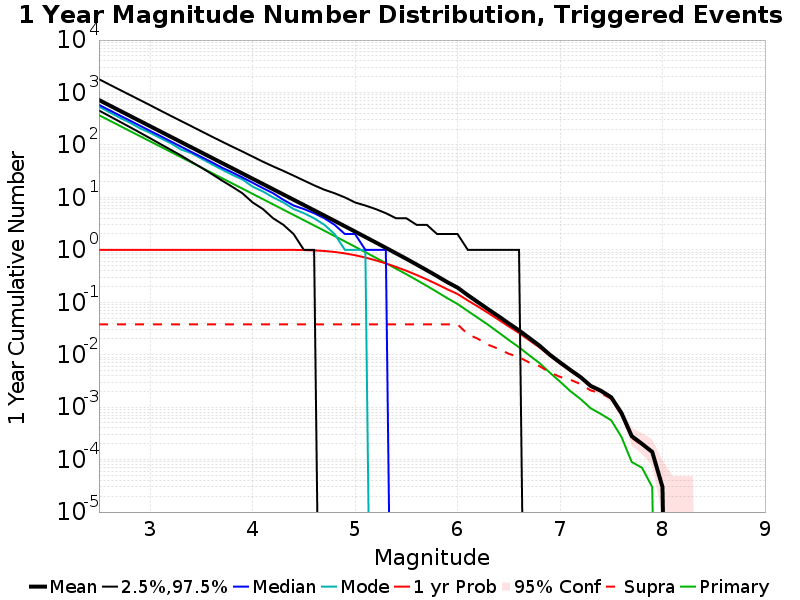

1 Year Magnitude Number Distribution

(top)

Legend

• Mean (thick black line): mean expected number across all 100000 catalogs
• 2.5%,97.5% (thin black lines): expected number percentiles across all 100000 catalogs
• Median (thin blue line): median expected number across all 100000 catalogs
• Mode (thin cyan line): modal expected number across all 100000 catalogs
• 1 yr Probability (thin red line): 1 year probability calculated as the fraction of catalogs with at least 1 occurrence
• 95% Conf (light red shaded region): binomial 95% confidence bounds on probability
• Primary (thin green line): mean expected number from primary triggered aftershocks only (no secondary, tertiary, etc...) across all 100000 catalogs

1 Month Magnitude Number Distribution

(top)

Legend

• Mean (thick black line): mean expected number across all 100000 catalogs
• 2.5%,97.5% (thin black lines): expected number percentiles across all 100000 catalogs
• Median (thin blue line): median expected number across all 100000 catalogs
• Mode (thin cyan line): modal expected number across all 100000 catalogs
• 1 mo Probability (thin red line): 1 month probability calculated as the fraction of catalogs with at least 1 occurrence
• 95% Conf (light red shaded region): binomial 95% confidence bounds on probability
• Primary (thin green line): mean expected number from primary triggered aftershocks only (no secondary, tertiary, etc...) across all 100000 catalogs

1 Week Magnitude Number Distribution

(top)

Legend

• Mean (thick black line): mean expected number across all 100000 catalogs
• 2.5%,97.5% (thin black lines): expected number percentiles across all 100000 catalogs
• Median (thin blue line): median expected number across all 100000 catalogs
• Mode (thin cyan line): modal expected number across all 100000 catalogs
• 1 wk Probability (thin red line): 1 week probability calculated as the fraction of catalogs with at least 1 occurrence
• 95% Conf (light red shaded region): binomial 95% confidence bounds on probability
• Primary (thin green line): mean expected number from primary triggered aftershocks only (no secondary, tertiary, etc...) across all 100000 catalogs

1 Day Magnitude Number Distribution

(top)

Legend

• Mean (thick black line): mean expected number across all 100000 catalogs
• 2.5%,97.5% (thin black lines): expected number percentiles across all 100000 catalogs
• Median (thin blue line): median expected number across all 100000 catalogs
• Mode (thin cyan line): modal expected number across all 100000 catalogs
• 1 d Probability (thin red line): 1 day probability calculated as the fraction of catalogs with at least 1 occurrence
• 95% Conf (light red shaded region): binomial 95% confidence bounds on probability
• Primary (thin green line): mean expected number from primary triggered aftershocks only (no secondary, tertiary, etc...) across all 100000 catalogs

1 Hour Magnitude Number Distribution

(top)

Legend

• Mean (thick black line): mean expected number across all 100000 catalogs
• 2.5%,97.5% (thin black lines): expected number percentiles across all 100000 catalogs
• Median (thin blue line): median expected number across all 100000 catalogs
• Mode (thin cyan line): modal expected number across all 100000 catalogs
• 1 hr Probability (thin red line): 1 hour probability calculated as the fraction of catalogs with at least 1 occurrence
• 95% Conf (light red shaded region): binomial 95% confidence bounds on probability
• Primary (thin green line): mean expected number from primary triggered aftershocks only (no secondary, tertiary, etc...) across all 100000 catalogs

Hazard Change Over Time

(top)

These plots show how the probability of ruptures of various magnitudes within 100km of any scenario rupture changes over time

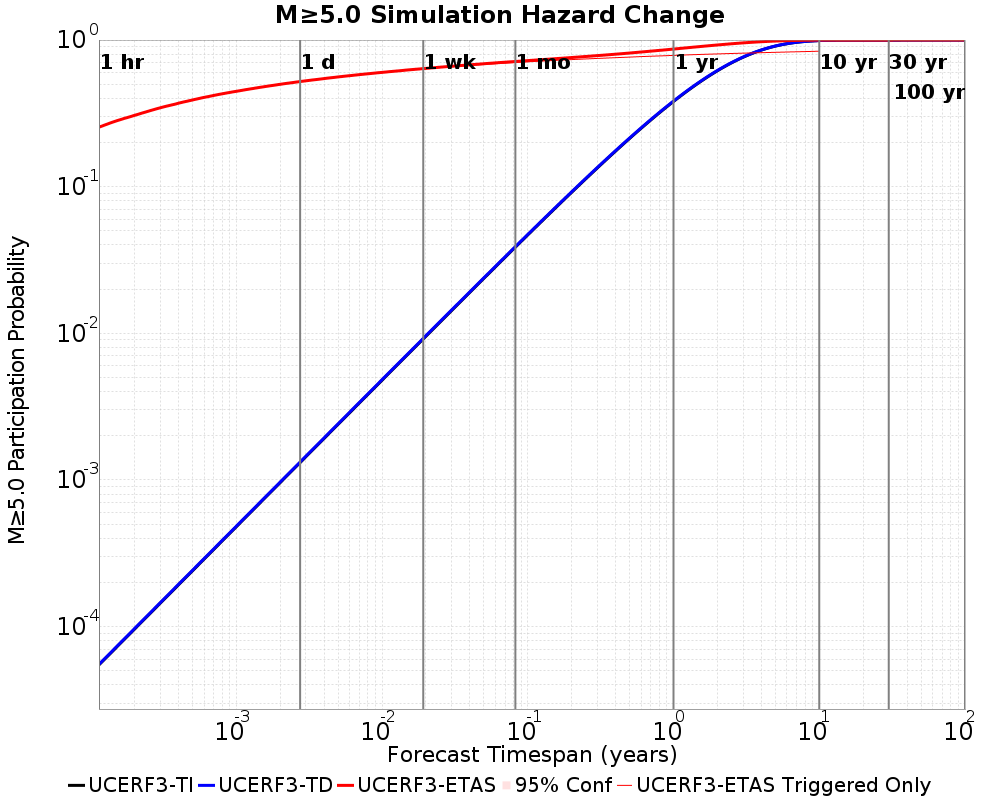

M≥5.0 Hazard Change Over Time

(top)

* forecast duration is longer than simulation length, only ETAS ruptures from the first 10 years are included

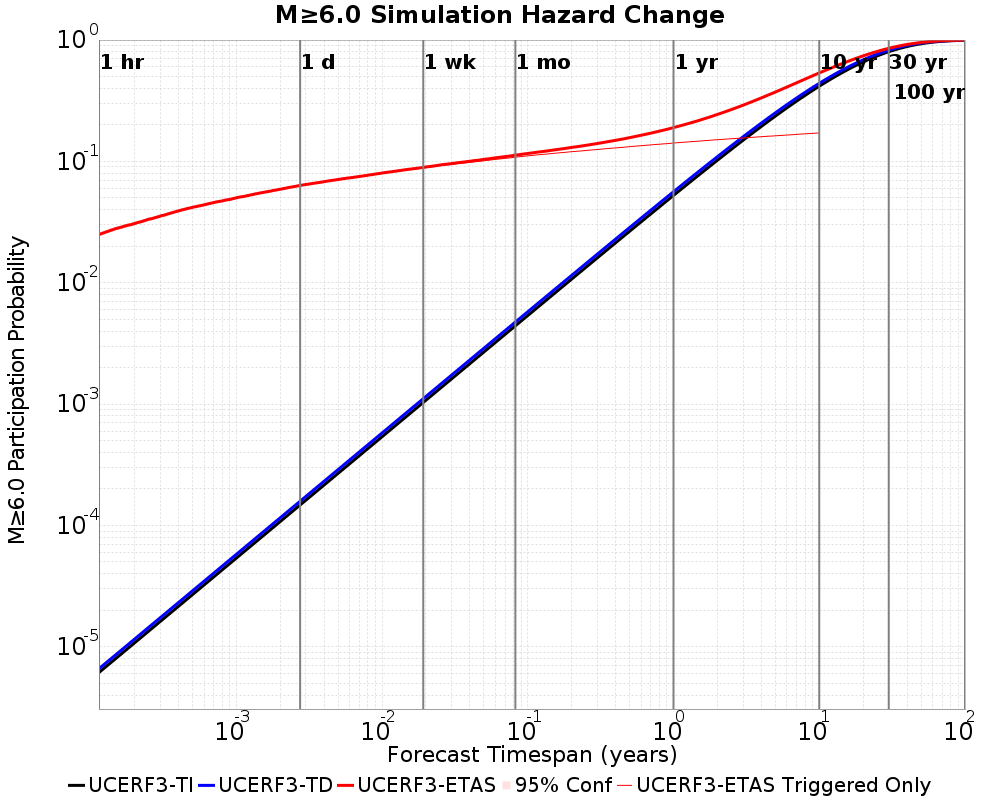

M≥6.0 Hazard Change Over Time

(top)

* forecast duration is longer than simulation length, only ETAS ruptures from the first 10 years are included

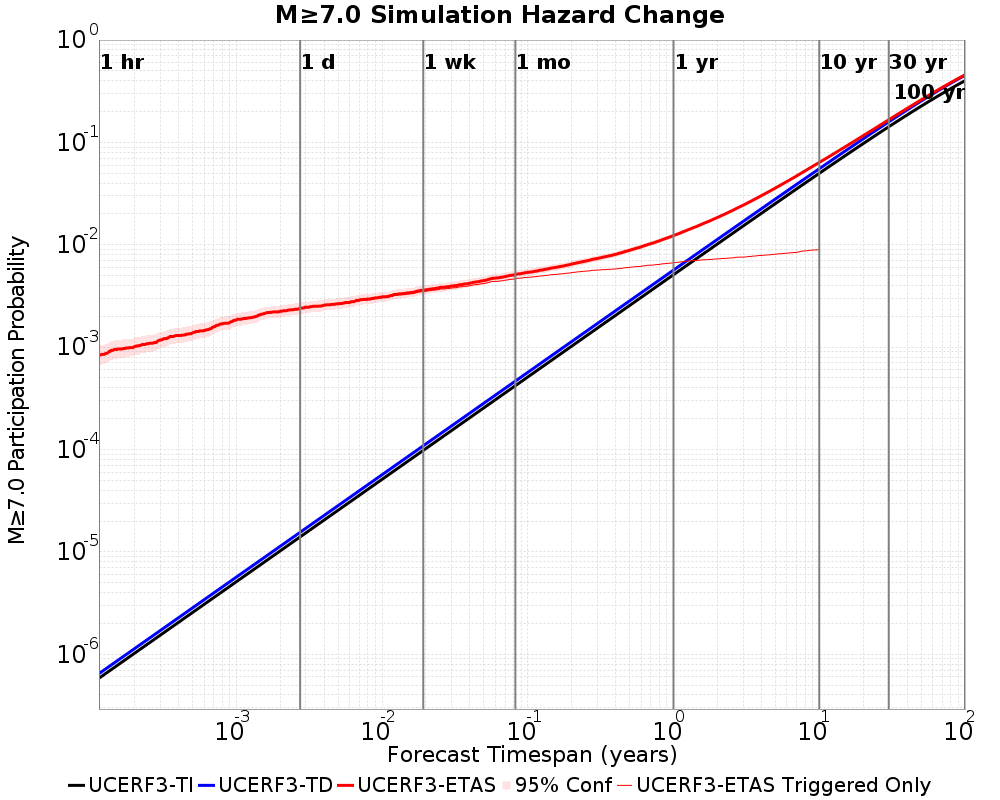

M≥7.0 Hazard Change Over Time

(top)

* forecast duration is longer than simulation length, only ETAS ruptures from the first 10 years are included

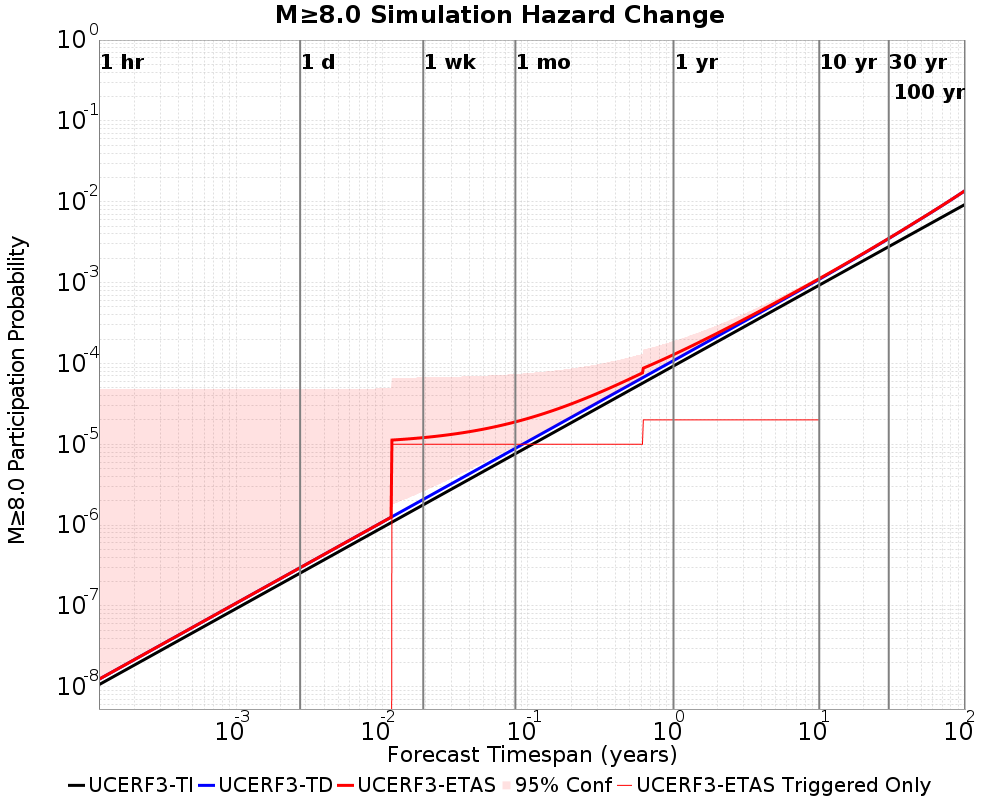

M≥8.0 Hazard Change Over Time

(top)

* forecast duration is longer than simulation length, only ETAS ruptures from the first 10 years are included

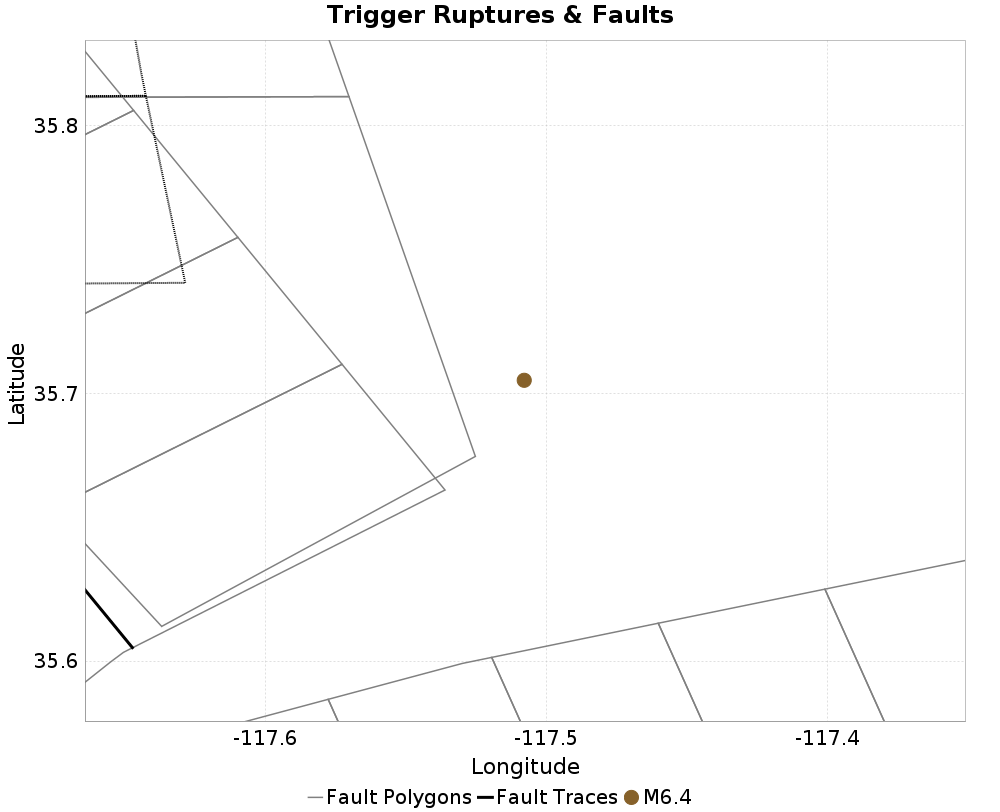

Trigger Rupture Fault Map

(top)

Fault Distances To Triggers

(top)

Section Participation

(top)

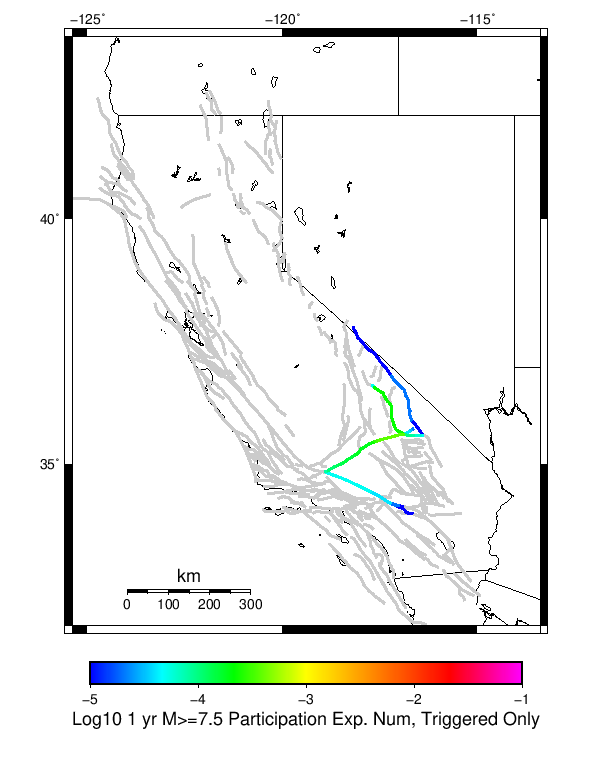

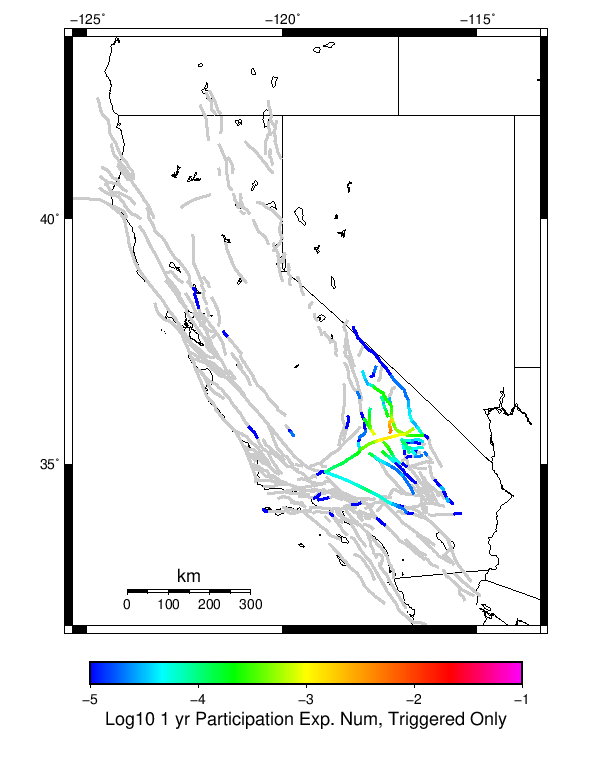

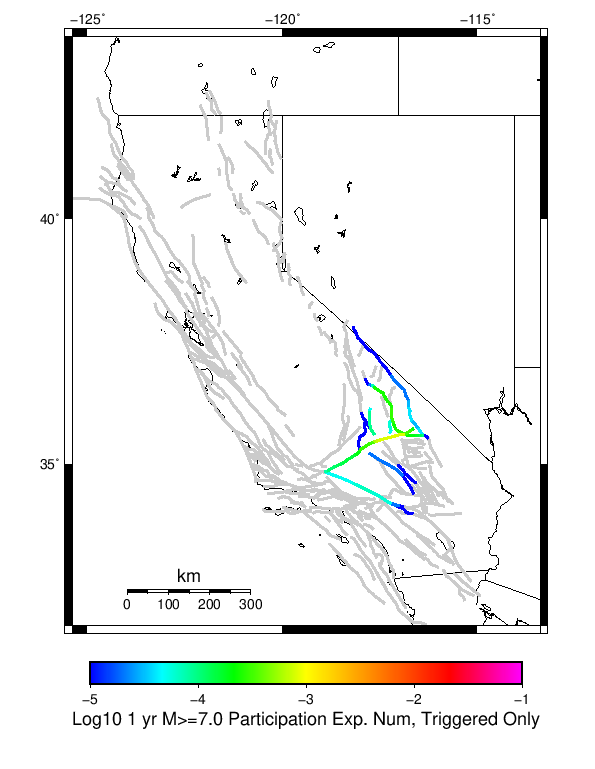

Section Participation Plots

(top)

Min Mag	1 yr Triggered Ruptures (no spontaneous)	10 yr Triggered Ruptures (no spontaneous)	10 yr Triggered Ruptures (primary aftershocks only)
All Supra. Seis.
M≥6.5
M≥7
M≥7.5
M≥8

Supra-Seismogenic Parent Sections Table

(top)

First 10 of 128 with matching ruptures shown

M≥6.5 Parent Sections Table

(top)

First 10 of 98 with matching ruptures shown

M≥7 Parent Sections Table

(top)

First 10 of 56 with matching ruptures shown

M≥7.5 Parent Sections Table

(top)

First 10 of 38 with matching ruptures shown

M≥8 Parent Sections Table

(top)

First 10 of 22 with matching ruptures shown

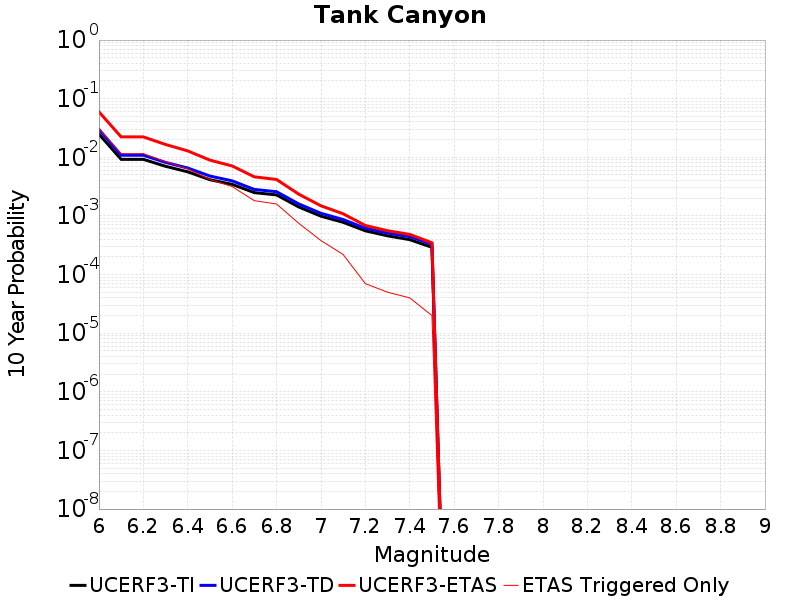

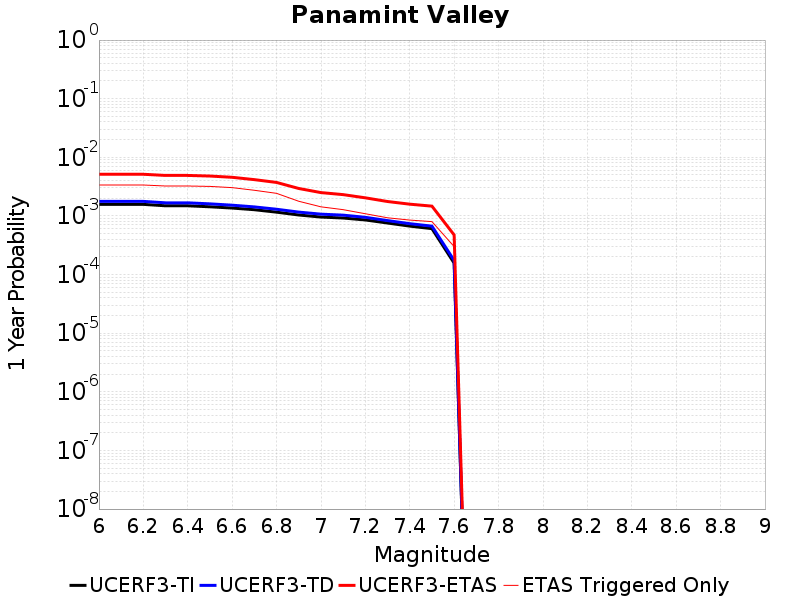

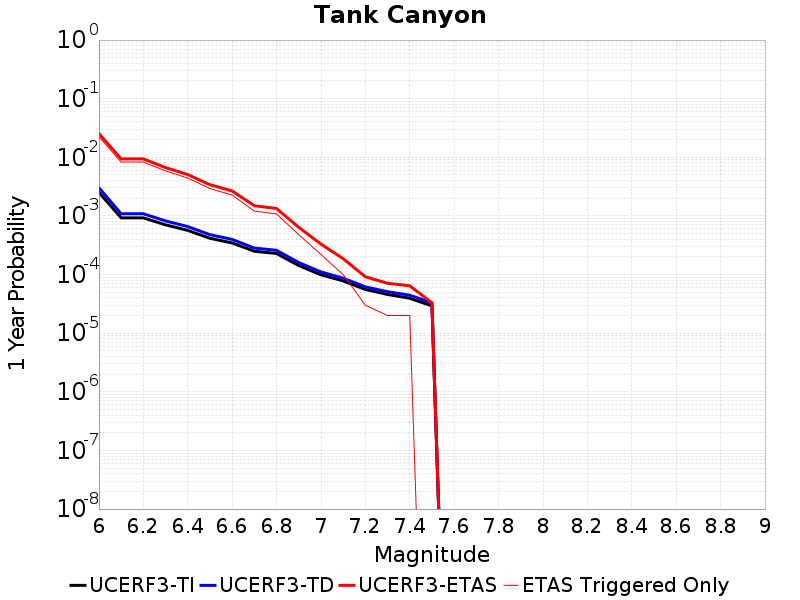

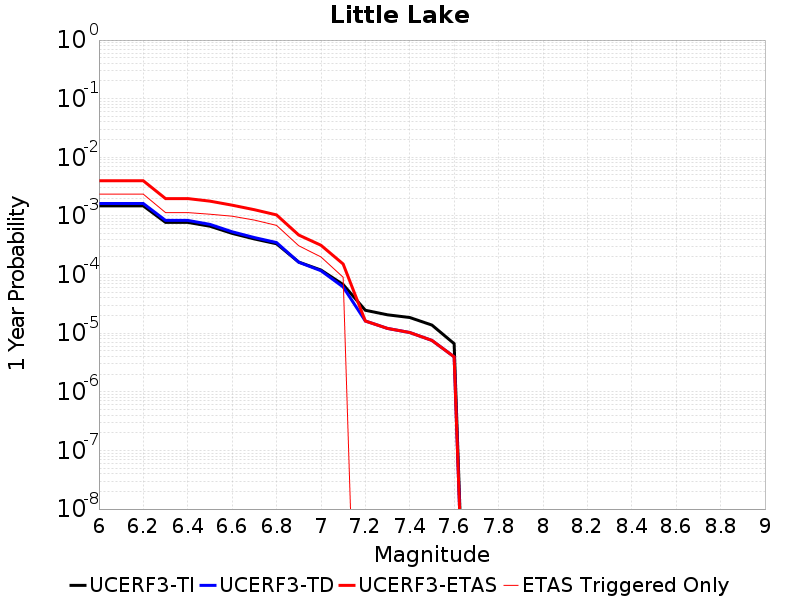

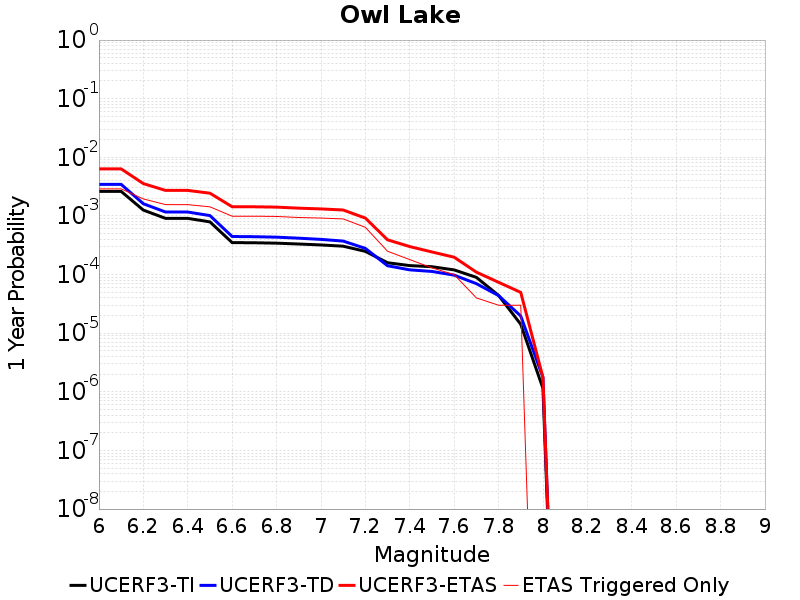

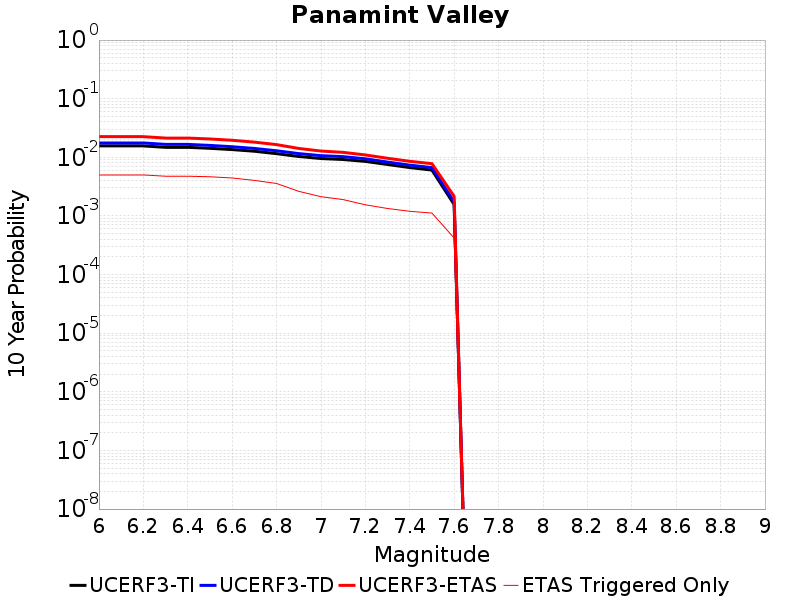

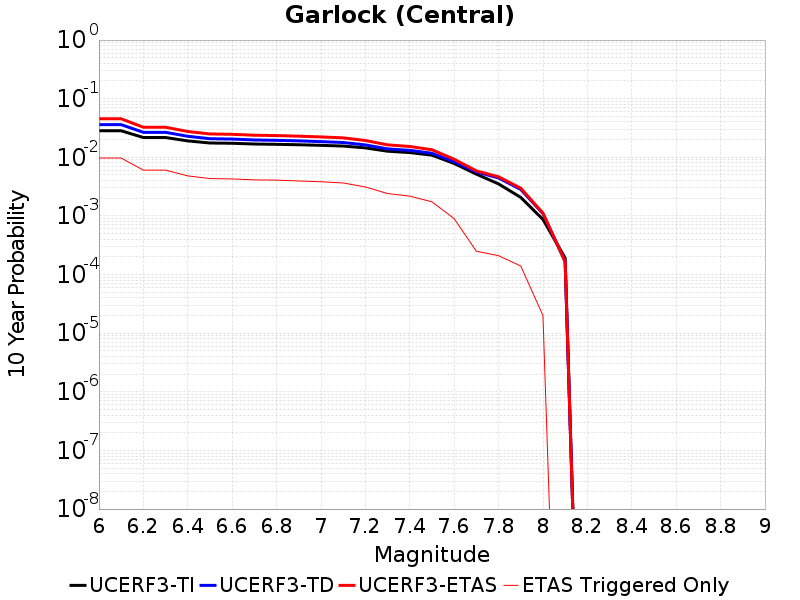

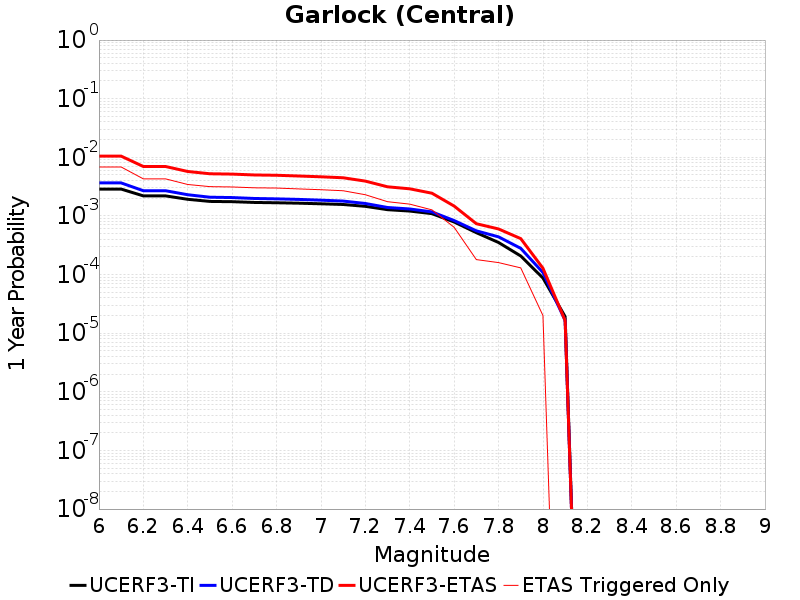

Fault Magnitude-Probability Distributions

(top)

The first 5 sections (sorted by trigger rate) are plotted below. All fault MPDs are available here

1 Year	10 Year

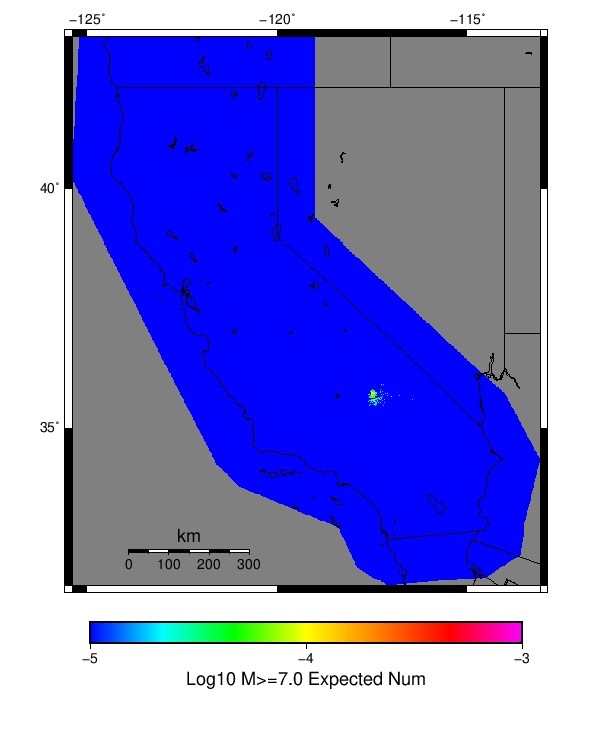

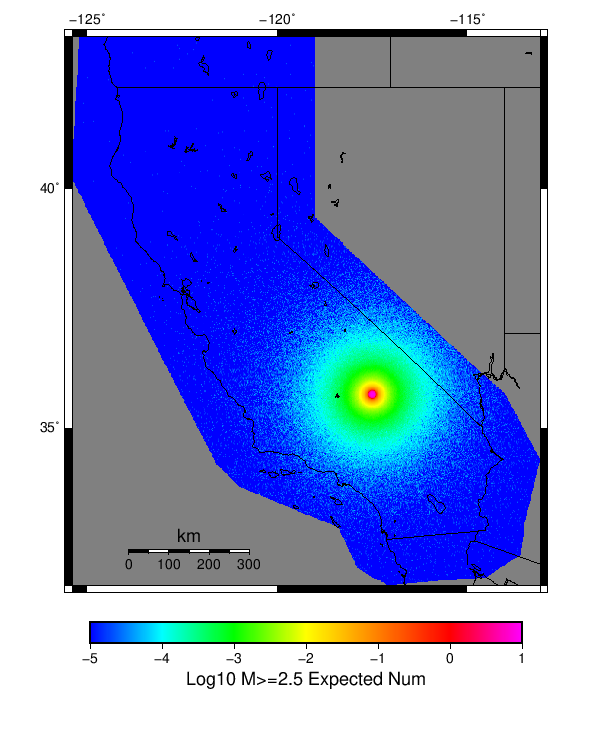

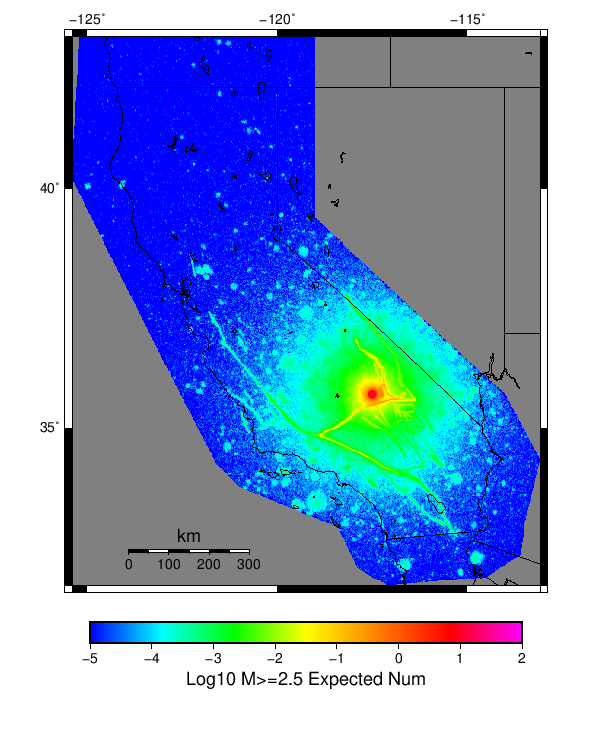

Gridded Nucleation

(top)

Min Mag	Triggered Ruptures (no spontaneous)	Triggered Ruptures (primary aftershocks only)
M≥2.5
M≥5
M≥6
M≥7

JSON Input File

(top)

{
  "numSimulations": 100000,
  "duration": 10.0,
  "startTimeMillis": 1562261628000,
  "includeSpontaneous": false,
  "randomSeed": 123456789,
  "binaryOutput": true,
  "binaryOutputFilters": [
    {
      "prefix": "results_complete",
      "descendantsOnly": false
    },
    {
      "prefix": "results_m5_preserve_chain",
      "minMag": 5.0,
      "preserveChainBelowMag": true,
      "descendantsOnly": false
    },
    {
      "prefix": "results_triggered_descendants",
      "descendantsOnly": true
    }
  ],
  "forceRecalc": false,
  "reuseERFs": true,
  "simulationName": "Searles Valley M6.4",
  "numRetries": 3,
  "outputDir": "${ETAS_SIM_DIR}/2019_07_04-SearlesValleyM64-includeSpont-full_td-10yr",
  "triggerRuptures": [
    {
      "mag": 6.4,
      "latitude": 35.705,
      "longitude": -117.508,
      "depth": 8.7
    }
  ],
  "cacheDir": "${ETAS_LAUNCHER}/inputs/cache_fm3p1_ba",
  "fssFile": "${ETAS_LAUNCHER}/inputs/2013_05_10-ucerf3p3-production-10runs_COMPOUND_SOL_FM3_1_SpatSeisU3_MEAN_BRANCH_AVG_SOL.zip",
  "probModel": "FULL_TD",
  "applySubSeisForSupraNucl": true,
  "totRateScaleFactor": 1.14,
  "gridSeisCorr": true,
  "timeIndependentERF": false,
  "griddedOnly": false,
  "imposeGR": false,
  "includeIndirectTriggering": true,
  "gridSeisDiscr": 0.1,
  "catalogCompletenessModel": "RELAXED"
}
